Why Your Ballantyne Water Heater Needs a Thermal Expansion Tank
Charlotte’s water pressure fluctuates between 50-80 PSI throughout the day and your closed-loop Ballantyne home faces dangerous pressure spikes that can destroy your water heater and plumbing fixtures. A thermal expansion tank is not optional—it’s a code-required safety device that protects your investment from thermal expansion damage. Is a Tankless Water Heater Worth It for Your Ballantyne Home?.
Without proper expansion protection heated water expands by up to 2% in volume creating pressure that forces your temperature and pressure relief valve to leak constantly. This is not just annoying—it is a sign your system is failing and could lead to catastrophic water heater failure within months. Signs You Need a Main Water Line Replacement in Pineville.
How Thermal Expansion Works in Your Ballantyne Home
When your water heater fires up the 40-50 gallons of cold water inside begins expanding as it heats from 50°F to 120°F. In older Ballantyne homes with open plumbing systems this extra volume simply pushed back into the city main. But since 2006 most Mecklenburg County homes have required backflow preventers creating a closed system where expanded water has nowhere to go. Mecklenburg County Water Services.
The pressure builds rapidly—often exceeding 150 PSI within 30 minutes of heating. Your T&P relief valve designed to open at 150 PSI becomes a pressure relief valve instead of a safety device. This constant cycling wears out the valve wastes water and creates the perfect conditions for a tank failure.. Read more about The Importance of Proper Water Heater Venting for Your Yorkmount Home.
Technical diagram showing thermal expansion cycle in closed-loop system
North Carolina Plumbing Code Requirements for Thermal Expansion
North Carolina Plumbing Code Section 607.3 mandates thermal expansion control for all water heating systems connected to a water supply where a backflow prevention device or check valve is installed. This means nearly every Ballantyne home built after 2006 requires an expansion tank. North Carolina Plumbing Code.
The code specifically states: “Means shall be provided to control increased pressure due to thermal expansion…” Failure to comply can result in failed inspections insurance complications and voided water heater warranties. Mecklenburg County plumbing inspectors routinely check for expansion tanks during water heater replacements.
Local Ballantyne plumbers report that 60-70% of homes they inspect lack proper expansion protection despite the requirement being in effect for nearly two decades. This creates a ticking time bomb for homeowners who think their system is fine until the T&P valve starts dripping or the water heater ruptures.
Signs Your Current Expansion Tank Has Failed
Expansion tanks contain a rubber diaphragm that separates air from water. Over 5-7 years this diaphragm can rupture turning your expansion tank into a waterlogged pressure bomb. Here is how to check if yours is failing:
- Tap Test
Tap the side of the tank. A healthy tank sounds hollow at the top (air side) and solid at the bottom (water side). If it sounds solid throughout the diaphragm has likely failed.. Read more about Stopping Loud Banging Sounds in Your Montclaire Pipes for Good.
- Weight Check
A full 2-gallon expansion tank weighs about 20 pounds. If yours feels significantly heavier it is likely full of water and non-functional.
- Schrader Valve Test
Press the air valve (like a tire valve) on top. If water comes out instead of air the diaphragm is ruptured and the tank needs replacement.
Common symptoms of a failed expansion tank include: T&P valve dripping continuously water hammer noises when fixtures close premature water heater element failure and unexplained pressure fluctuations throughout your home. Common Sewer Line Issues for Historic Dilworth Properties and How to Fix Them.

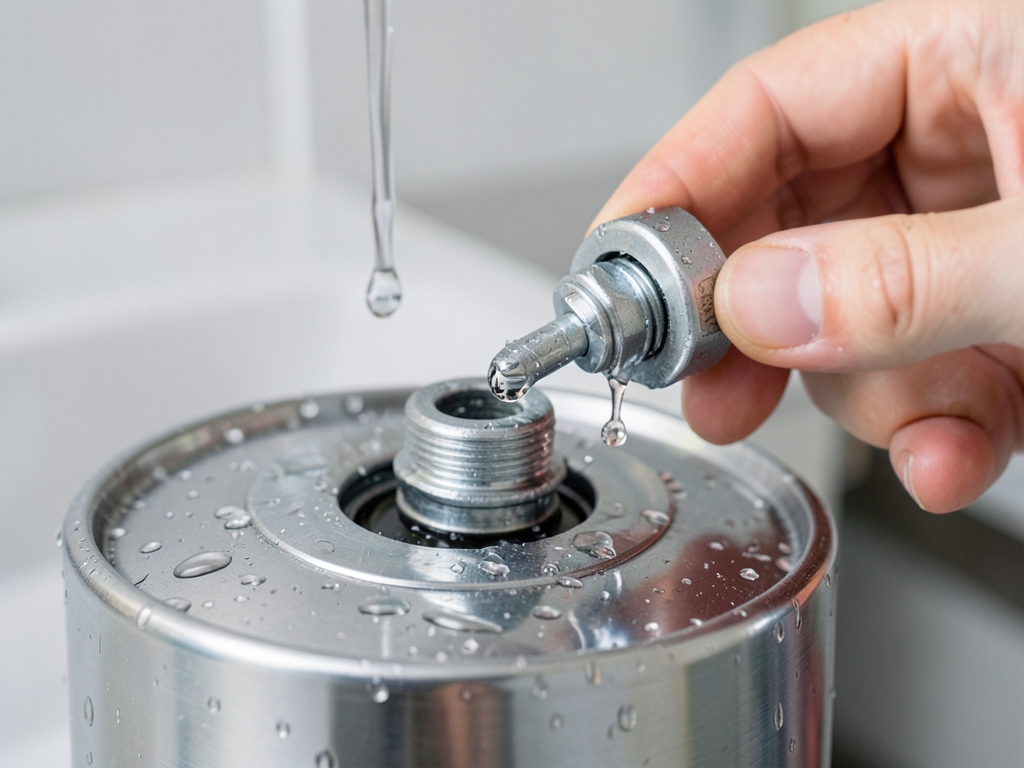

Photo showing schrader valve test on expansion tank
Our Professional Installation Process
Installing an expansion tank requires more than just screwing it onto a pipe. Our Ballantyne plumbers follow a precise process to ensure your system is protected:
- System Analysis
We test your home’s water pressure using a gauge on an outdoor spigot. Ballantyne homes typically run 60-75 PSI but we have seen spikes to 95 PSI during peak demand hours.
- Pre-Charging
The expansion tank must be pre-charged to match your home’s water pressure. If your pressure is 70 PSI we charge the tank to 70 PSI using a standard tire pump. This ensures the diaphragm has room to compress when water expands.
- Mounting Location
We mount the tank vertically on the cold water line within 6 feet of the water heater. This minimizes pressure drop and ensures proper function. In Ballantyne’s newer homes we often install in utility closets or garages where space allows.
- Pipe Connection
We use dielectric unions to prevent galvanic corrosion between copper pipes and the steel tank. All connections are pressure-tested to 150 PSI before completion.
The entire installation takes 1-2 hours and includes pressure testing code compliance verification and a complete system flush to remove any debris from the installation process.. Read more about Certified Backflow Testing and Prevention Services for Businesses in Concord.
Comparing Expansion Tank Options for Ballantyne Homes
| Feature | 2-Gallon Tank | 4.5-Gallon Tank |
|---|---|---|
| Best For | 1-2 bathroom homes under 2000 sq ft | 3+ bathroom homes or larger square footage |
| Water Heater Size | Up to 50-gallon tank | 50+ gallon tanks or tankless systems |
| Dimensions | 9.5″ diameter x 12″ height | 11″ diameter x 15″ height |
| Price Range | $80-120 | $120-180 |
| Lifespan | 5-7 years | 6-8 years |
| Ballantyne Zip Codes | 28277 28226 | 28277 28226 |
Ballantyne’s newer construction often features high-efficiency tankless water heaters that require larger expansion tanks due to their rapid heating cycles. These systems can experience pressure spikes of 30-40 PSI in seconds making proper expansion protection critical.
How Much Does Expansion Tank Installation Cost in Charlotte?
Professional expansion tank installation in Ballantyne typically costs between $350-550 depending on your specific situation. Factors affecting price include: Professional Toilet Repair and Installation Services in Matthews.
- Accessibility of the installation location
- Need for additional plumbing modifications
- Emergency vs scheduled installation
- Permit requirements in your specific neighborhood
This investment protects your $1500-2500 water heater and prevents costly water damage from T&P valve failures. Compare this to the cost of emergency water heater replacement or flood damage repairs which can easily exceed $5000. Gas Line Repair & Installation.
Before/after installation showing proper mounting and connections
Frequently Asked Questions
Is an expansion tank really required by code?
Yes. North Carolina Plumbing Code Section 607.3 requires thermal expansion control when a backflow preventer or check valve is installed. Most Ballantyne homes built after 2006 have these devices making expansion tanks mandatory.
Can I install an expansion tank myself?
While technically possible DIY installation often leads to problems. The tank must be properly pre-charged to match your home’s water pressure mounted in the correct location and installed with proper dielectric connections. Incorrect installation can cause more problems than it solves.
How long does an expansion tank last?
Most expansion tanks last 5-7 years in Ballantyne’s water conditions. The rubber diaphragm deteriorates over time especially with our area’s water chemistry. Testing your tank annually can prevent unexpected failures.
Will my water heater warranty cover damage from thermal expansion?
Most manufacturers void warranties if thermal expansion damage occurs and no expansion tank was installed. This is explicitly stated in warranty documents from major brands like Rheem AO Smith and Bradford White.
What happens if I don’t install an expansion tank?
Without an expansion tank thermal expansion pressure will force your T&P valve to leak waste water and eventually fail. The pressure can also damage your water heater’s internal components pipes and fixtures. In extreme cases it can cause tank rupture.
Call (980) 342-9933 today to schedule your expansion tank inspection. Don’t wait until your T&P valve starts dripping or your water heater fails. Ballantyne homes need proper thermal expansion protection to prevent costly damage and ensure code compliance.
Pick up the phone and call (980) 342-9933 before the next pressure spike damages your plumbing system. Our licensed Ballantyne plumbers are ready to protect your home with professional expansion tank installation that meets all North Carolina code requirements. For more information, visit Energy.gov Tankless Water Heaters.
